Miter Station
$5.99

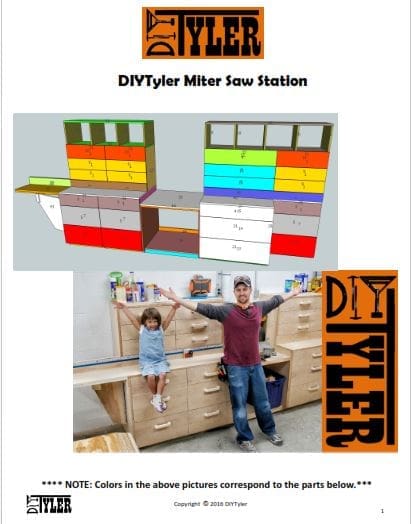

18 Pages, full color, plans of my miter saw station. This station is for a NON-sliding miter saw, a sliding saw will not fit on this design.
These plans are non-refundable. After checkout you will get a link to download the file.
Note: my plans will give you the cut list and assembly layout, if you want highly detailed plans and ones designed for a sliding miter saw check out Jay Bates' Miter Station.
DIYTyler Miter Station Dimensions:
138″ wide with the folding wing down
166″ wide with the folding wing up
27 1/2″ deep and approximately 70 1/2″ tall
Chris –
Nice job. I like your videos. Keep up the good work.
Rick McCaskill –
Great project. I have to build one when we move into our new home.
Love your kids, you should be proud.
Volker Dicken –
Suuper aus Germany
Armando –
Hi Tyler I want to said that you miter station is very nice I am going to build one on the next month.
Thank you for your videos
55Y (verified owner) –
Awesome station. Purchased the plans. I don’t believe you listed the leveling feet style/size you used in the supply list. Mind sharing? Thanks!!
DIYTyler –
Just a 5/16 bolt and a threaded insert.
Nick Barber –
Tyler, I know this plan set is for non-sliding miter saw, but would a Delta Cruzer sliding miter saw fit? The Cruzer has compact sliding arms. Just wondering what your thoughts are on that.
DIYTyler –
I believe it would fit!
Jack Sparks –
What’s the width of part 34??
DIYTyler –
24 1/4″
55Y (verified owner) –
Purchased the plans. Possible to receive the sketchup as well? The images don’t show all the relevant angles. Thanks!
Bob J –
Awesome plans! Would be a huge help if you could provide the drawer slide locations (ie: distance from the bottom of the cabinets). Want to make blocks to locate and secure the drawers the way Jay Bates did in his build and want to be sure they’re correctly positioned to your specs. Thanks from a noobie!
Jon L –
I’m interested in building your station but I need to fit it into a unique space in the shop and so I’ll need to modify it to fit that space. Does the sketchup file come with the purchased plans? Or is there a way to get it included? I’d even pay a fee if need be. I purchased Jay’s plans and it came with the sketchup file and I’ve been playing around with it to make it fit that space. I think your plans would better fit my Bosch gliding saw with a little modification to the plans. Thanks.
Fred –
How many total sheets of plywood was this project? Wondering about rough cost but like it a lot!
Kevin J (verified owner) –
I Purchased the plans two years ago finally was able to build I love this thing. I can finally say my workshop is more organized now.
Tim W –
Hi Tyler, great video, clean and simple. You mention that these plans ARE NOT FOR A SLIDING CMS, what modification would you need to make for that?
DIYTyler –
Tim, you would have to build the station much deeper to accommodate. That said there are several new saws on the scene that have the sliding bars in the front or are built around a gliding system, these would work great on this miter station.
Jay Bates (Jayscustomcreations.com) has a pretty much the same miter station but built for a sliding saw if you end up wanting a traditional sliding saw.
